Time-Spectral Modelling in Fusion

Timely development of sustainable fusion power critically depends on powerful theoretical and computational approaches for understanding and prediction. Time-spectral methods offer possibilities for efficient solution of problems in plasma equilibrium, stability and transport. The research group is led by Professor Jan Scheffel.

Background

For understanding and predicting the evolution of fusion plasmas, consisting of some 1 000 000 000 000 000 000 000 particles, we need sophisticated mathematical and computational models. Since individual electron and nuclei behaviour fortunately can be averaged over, plasma theories typically deal with large collective distributions of particles or with fluid elements representing several billions of particles. The resulting models are still highly complex and standard numerical computations of, for example, a single second of turbulence in a plasma device may take days on a state of the art computer. Time-spectral methods, however, replace traditional time stepping with analytical approximations in much larger time intervals.

What are the advantages of time-spectral methods?

The time evolution of a fusion plasma is traditionally modelled by partial differential equations, where the time dimension is represented with finite steps. Numerical stability and accuracy usually require these steps to be severly limited in size. This restriction, typical for so-called explicit methods, can be lifted and poor accuracy of implicit or semi-implicit methods can be remedied by employing spectral functions. We have thus developed the Generalized Weighted Residual Method  (GWRM), which uses Chebyshev polynomials for an ansatz solution in all temporal, spatial and parameter spaces. More specifically, we assume that the particular problem of interest can be cast in the form

 \(\begin{align*} \dfrac{\partial\mathbf{u}}{\partial t}=D\mathbf{u}+f \end{align*}\),

where \(\mathbf{u} = \mathbf{u}(t,\mathbf{x};\mathbf{p})\) is the sought solution vector in time \(t\), space \(\mathbf{x}\) and parameters \(\mathbf{p}\). Here \(D\) is a matrix differential operator that may depend on \(\mathbf{u}\), \(t\), \(\mathbf{x}\) and \(\mathbf{p}\), and \(\mathbf{f} = \mathbf{f}(t,\mathbf{x};\mathbf{p})\) is a known forcing term. What we mean with a time-spectral solution of this equation is that a solution ansatz

\(\begin{align*} \mathbf{u}(t,x;p)=\sum_{k=0}^{K}{'} \sum_{l=0}^{L}{'}\sum_{m=0}^{M}{'}\mathbf{a}_{klm}T_k(\tau)T_l(\xi)T_m(P) \end{align*}\)

is inserted into the equation. Having decided the orders (\(K\),\(L\),\(M\)) of the expansions of the Chebyshev polynomials \(T\) in time, space and parameter space, respectively, an approximate analytical solution to the problem is finally found by determining the coefficients \(\mathbf{a}_{klm}\).

This may seem simple enough, but in order for the GWRM to be efficient, using only reasonable amounts of memory space, a number of supporting algorithms have been developed by our group. These include algebraic methods for spectral space, state of the art root solvers, spatial subdomain techniques and parallelization procedures.

What problems in fusion are addressed?

The GWRM can be employed in a number of fields in physics and has efficiently solved problems in, for example, chaotic weather dynamics , compressible fluid flow (Navier-Stokes equations), nonlinear magnetohydrodynamics and two-fluid turbulence.

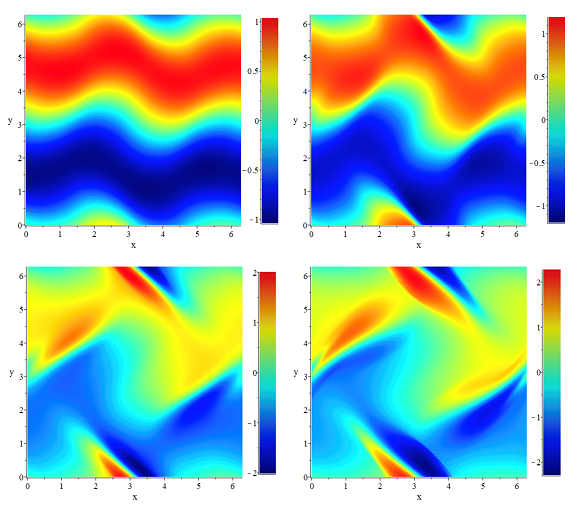

A target of prime interest is plasma turbulence, since control of turbulence is crucial for high performance fusion plasmas. Below we show a GWRM computation of the so-called Orszag-Tang vortex, obtained by solving the compressible nonlinear magnetohydrodynamic equations. The four panels illustrate how steep gradients in the magnetic field develop over time.

GWRM computation of the Orszag-Tang vortex.

Our research is also aimed at solving initial-value problems in kinetic plasma theory, in particular pressure driven resistive instabilities in the reversed-field pinch (RFP). Initial-value problems in kinetic plasma theory are traditionally solved using time stepping methods. Due to the high dimensionality (time plus at least one spatial and one velocity space dimension), the GWRM may substantially reduce computational time using smoothing techniques.

Present activities of the time-spectral modelling group

In order to manifest the full potential of the GWRM, computational algorithms need to be developed further. In parallel, we apply the GWRM to problems of interest for optimizing fusion plasma performance. Some research areas of current interest are listed below.

  • Efficiency and memory usage. Development of powerful, globally convergent root solvers that use limited amounts of memory.
  • Sharp gradients. Algorithms for adaptive subdomains in space and time.
  • Temporal smoothing. By integrating the initial-value equations in time, the solutions become more smooth and the GWRM may employ longer time intervals. Alternatively, exact solutions for the averaged solutions are obtained analytically and solved computationally.
  • Fluid theory. Algorithms for solution of nonlinear plasma turbulence models.
  • Kinetic theory. Nonlinear modelling of large Debye-length plasma oscillations, studies of resistive pressure driven instabilities in a magnetized plasma.

Master's thesis

For a master's thesis we may suggest either of two types of projects:

  • Mathematical and/or computational studies related to development and application of the GWRM. These could, for example, entail root solver convergence, adaptive meshes, temporal smoothing and problems in kinetic stability theory and turbulence. Proficiency in Maple or MATLAB will be helpful.
  • Studies and development of other computational approaches for partial differential equations, with relation to magnetic confinement fusion modelling.
