26 Feb. - Summary of preliminary results from wastewater analysis for tracing SARS-CoV-2

Stockholm region, February 26, 2021

Background and method

Sampling of wastewater has been done since mid-April 2020 at Bromma, Henriksdal, and Käppala wastewater treatment plants (WWTP). These treatment plants receive wastewater from a population of approximately 360,000; 860,000 and 500,000, respectively.

The sampling at Henriksdal and Bromma started in week no. 16 (13 April) and the Käppala sampling started in week no. 18, following a sampling protocol developed by KTH. The flow-proportional pooled samples were taken bi-weekly until end of July. From week no.35 the sampling was done every week. After concentration, filtering and preparation, the samples have been analyzed using qPCR technique for genetic material (RNA) belonging to the virus SARS-CoV-2, known to cause the COVID-19 pandemic.

When analyses have not been possible immediately, raw wastewater has been frozen at –20 degrees, and concentrated wastewater or purified RNA stored at -80 C, until the next analysis step has been carried out.

During June and July, KTH researchers have compared four different concentration methods, two of them are commonly used internationally and the other two were modified methods adapted by the KTH team. The sensitivity of two ultrafiltration-based methods and two adsorption and extraction-based methods were compared for the SARS-CoV-2 as well as for two reference viruses. Our investigation concluded that the double ultrafiltration method adapted by KTH has a significantly higher efficiency compared to single filtration and adsorption methods. The scientific article has been published in Science of Total Environment, an internationally leading scientific journal, and is available on this link.

We wish to re-iterate that water and wastewater are not known to be important pathways for transmission of the virus. We have not detected any virus in treated outgoing water and the tracing of SARS-CoV-2 in wastewater should not cause any need for additional precautions for water consumers.

Preliminary Results from SARS-CoV-2 monitoring in Stockholm Region

The RNA signal detected in the wastewater analyses reflects the amount of virus excreted from infected persons within the catchment area, and may thus be used as an indicator when assessing the trend of the COVID-19 pandemic among the population. The analysis results have been converted into gene copy numbers.

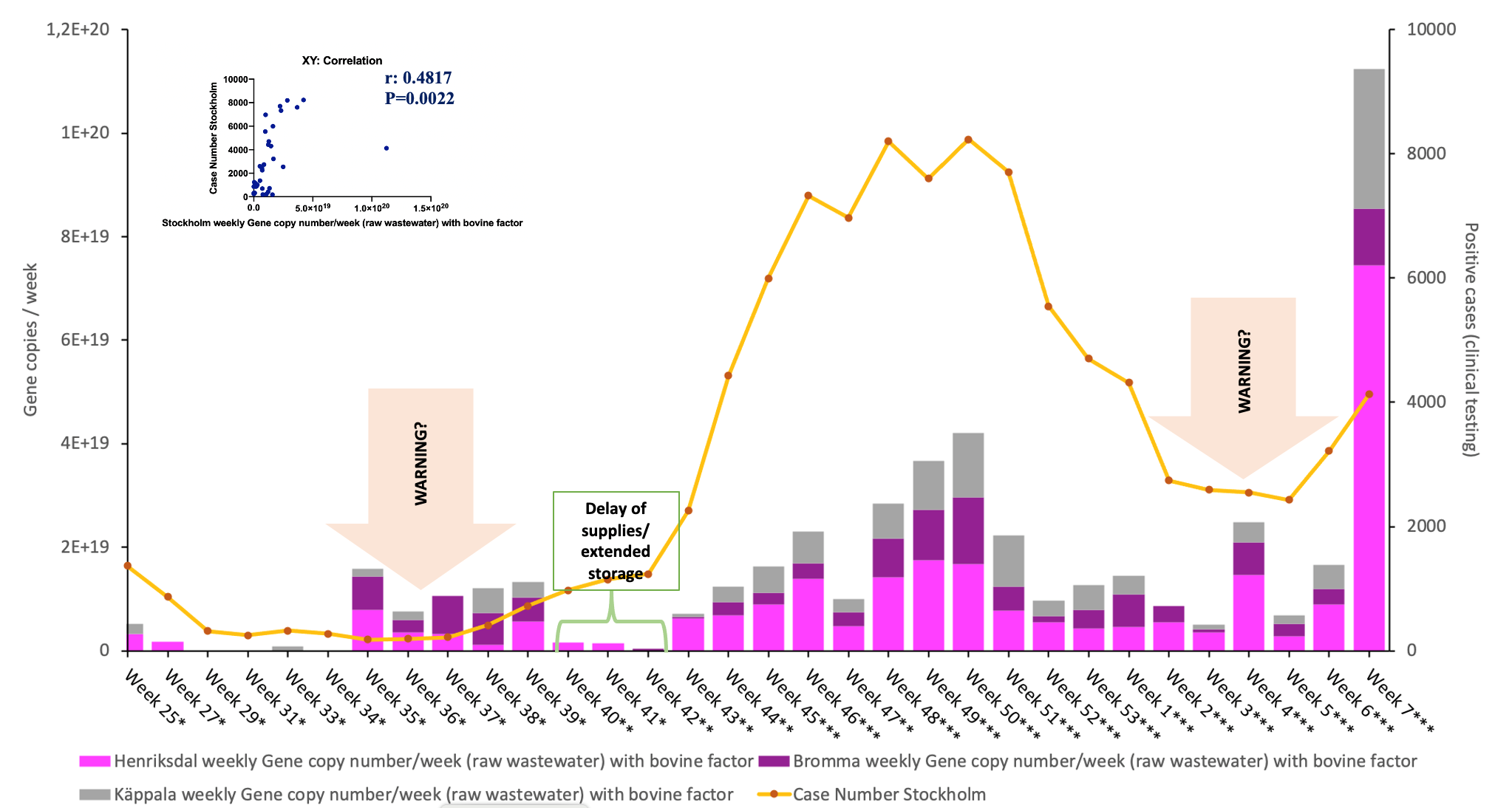

Gene copy number/week (raw wastewater) with bovine factor in Stockholm region up to week 7, 2021.
Figure: SARS-CoV-2 levels in wastewater for the three plants Henriksdal, Bromma and Käppala, per week from June 2020 to February 2021. The levels are adjusted for waterflow through each inlet. The solid line represents new weekly cases for inhabitants of the area (statistics from Folkhälsomyndigheten, FoHM).
  • The first increase was detected in week 4. There was a decrease in week 5 but last week a new increase was detected again.
  • Statistical analysis showed that there is a significant correlation between the wastewater data and positive case numbers.


Zeynep Cetecioglu Gurol, Associate Professor
Cecilia Williams, Professor
KTH Royal Institute of Technology
