Brush that loosens cells in cysts could become weapon against pancreatic cancer

The model is a transparent orb and the loop brush is visible inside.
A model of a cyst that was used to test the wire brush. Photo: courtesy of Filipe Marques
Published Jan 27, 2021

In a potential step forward for early pancreatic cancer diagnosis, a miniaturised brush was successfully tested as a possible technique for loosening cells from the walls of pancreatic cysts. If proven safe to use, the technique could dramatically increase the number of cystic cells available for analysis, a key advance given the scarcity of cells in cystic fluid drawn with a needle alone.

Researchers at KTH Royal Institute of Technology proposed modifying endoscopic ultrasound-guided fine needle aspiration with the addition of a loop brush which can be inserted into a cyst through the needle, says Wouter van der Wijngaart , professor of Micro and Nanosystems  at KTH.

“In order to detect malignancy in a pancreatic cyst, the cells from the inner wall of the cyst need to be analyzed,” van der Wijngaart says. “You may find some of those released into the cystic fluid naturally; but sometimes you find none - that is why we try to brush them off.”

Pancreatic cancer is the fourth leading cause of cancer death in Western countries. With a survival rate of between 2 and 9 percent, early detection is critical.

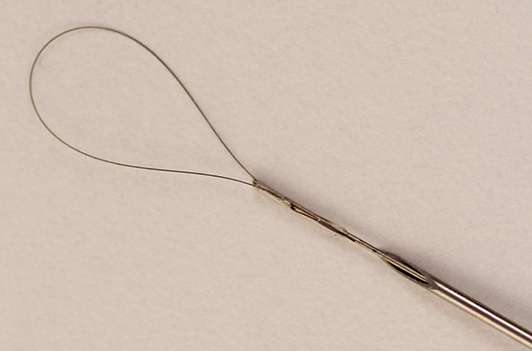

The loop brush sticking out of the end of a needle
A close-up view of the loop brush. Photo: courtesy of Filipe Marques

“Pancreatic cystic lesions are precursors of pancreatic cancers and a prime target for early diagnosis,” van der Wijngaart says. However, he says, 20 percent of cystic fluid samples contain negligible amounts of cells, or no cells at all, hampering a proper diagnosis.

To evaluate the functionality of the device, the researchers performed tests on models of cysts and intestines from pigs and cows.

They fitted the aspiration needle with a 50 micrometer-thin nitinol wire shaped in a 1 cm diameter loop. The loop is fixated to a 280 micrometer-thick nitinol guidewire. The loop is compressed and inserted into a cyst through a fine needle with diameter below 0.5 mm. Once inside the cyst, the brush opens up and is rotated with low force to abrade the cells from the cyst wall. Then the loop is retracted and the cystic fluid is aspirated through the needle and collected for cytology.

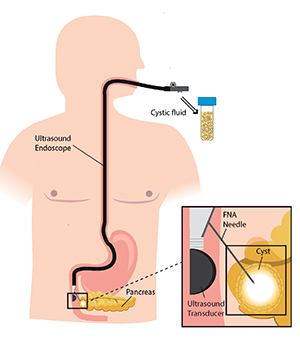

Illustration of insertion of endoscope  through the mouth into the stomach, where needle penetrates.
Illustration of insertion of endoscope through the mouth into the stomach.

The cell content increased up to 54 times when using low‐viscous water as fluid in soft tissue, soft‐like cavities; up to 174 times when using high‐viscous glycerol; and at least 10 times in cow ovary cysts.

The project was initiated by co-author Francisco Baldaque Silva, surgeon at Karolinska University Hospital, and the experimental work was performed by PhD student Filipe Marques . Also contributing to the study were KTH researcher Niclas Roxhed  and Karoliska Institutet researcher Urban Arnelo. The project was sponsored by Region Stockholm.

David Callahan

A loop‐shaped minimally invasive brush for improved cytology sampling of pancreatic cysts during EUS‐FNA, Medical Devices & Sensors, DOI: 10.1002/mds3.10165
