Devices could become even smaller, more powerful with method for integrating 2D materials

Picture of a wearable sensor
If we could shrink semiconductors even further, a whole new silicon revolution would follow. Photo: AB
Published Feb 10, 2021

If we could shrink semiconductors even further, a whole new silicon revolution would follow. But because that’s impossible, the next best hope is integrating semiconductors with 2D atomically-thin materials, such as graphene, upon which circuits can be created on an incredibly small scale. A research team reports a new method to make this notoriously difficult combination work on an industrial scale.

The technique was reported today in Nature Communications  by researchers from KTH Royal Institute of Technology in Stockholm, in collaboration with RWTH Aachen University, Universität der Bundeswehr München, AMO GmbH and Protemics GmbH, in Germany.

A reliable, industrially-scalable method of integrating 2D materials, such as graphene, with silicon semiconductors would help downscale electronics and usher in new capabilities for sensor technology and photonics.

However, the integration of 2D material to the semiconductor, or a substrate with integrated electronics, is fraught with a number of challenges.

“There’s always this critical step of transferring from a special growth substrate to the final substrate on which you build sensors or components,” says Arne Quellmalz , a researcher in photonic microsystems at KTH.

“You might want to combine a graphene photodetector for optical on-chip communication with silicon read-out electronics,” Quellmalz says. “But the growth temperatures of those materials is too high, so you cannot do this directly on the device substrate.”

Experimental methods for transferring grown 2D material to desired electronics have been beset by a number of deficiencies, such as degradation of the material and its electronic transport properties, or by contamination of the material.

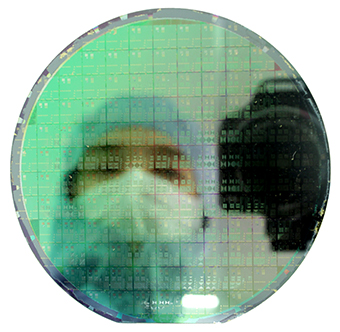

Reflection of researcher seen in silicon wafer
Researcher Arne Quellmalz says that the solution for integrating 2D material with semiconductors lies in the existing toolkits of semiconductor manufacturing.

Quellmalz says that the solution lies in the existing toolkits of semiconductor manufacturing: to use a standard dielectric material called bisbenzocyclobutene (BCB), along with conventional wafer bonding equipment.

“We basically glue the two wafers together with a resin made of BCB,” he says. “We heat the resin, until it becomes viscous, like honey, and press the 2D material against it.”

At room temperature, the resin becomes solid and forms a stable connection between the 2D material and the wafer, he says. “To stack materials, we repeat the steps of heating and pressing. The resin becomes viscous again and behaves like a cushion, or a waterbed, which supports the layer stack and adapts to the surface of the new 2D material.”

The researchers demonstrated the transfer of graphene and molybdenum disulfide (MoS2), as a representative for transition metal dichalcogenides, and stacked graphene with hexagonal boron nitride (hBN) and MoS2 to heterostructures. All transferred layers and heterostructures were reportedly of high quality, that is, they featured uniform coverage over up to 100-millimeter sized silicon wafers and exhibited little strain in the transferred 2D materials, the paper states.

David Callahan

Large-area integration of two-dimensional materials and their heterostructures by wafer bonding, Nature Communications, DOI: 10.1038/s41467-021-21136-0
